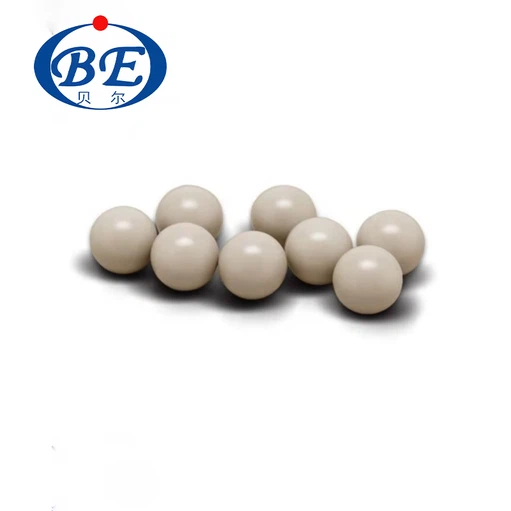

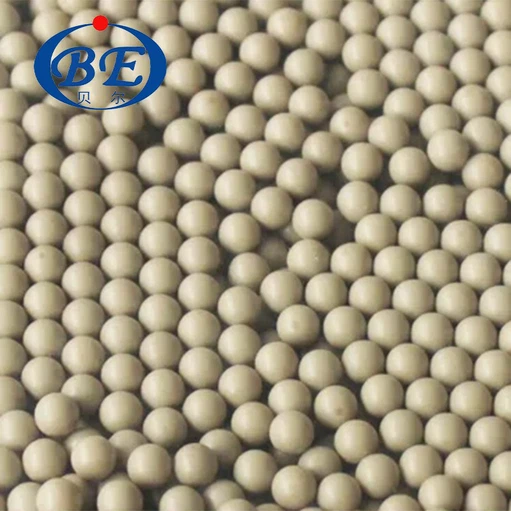

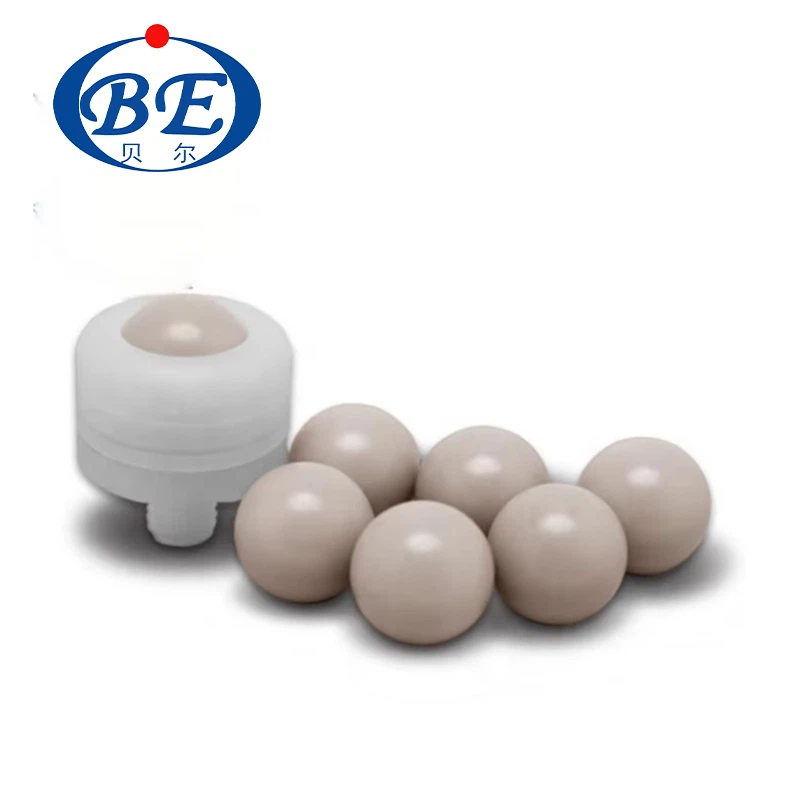

Peek Thermoplastic Pob

Khoom npe

PEEK Plastic Pob

Khoom siv

Polyetheretherketone, PEEK

Loj

1mm-100 hli

Qib

G0-G3 (0.01-0.05 hli)

Qhov ntom

Loj: 1.3cm / cm3

Xim

xim raws li qhov kev thov, ntuj

Feature

Kev ua tau zoo ib nrab- cov khoom siv lead ua cov thermoplastic, lawv muab cov khoom siv kho tshuab siab, qhov ruaj khov thiab
zoo heev hnav thiab puas, corrosion, kub kub thiab gamma hluav taws xob kuj. Qhov kub kub kuj txo qis
considerably nyob rau hauv cov ntaub ntawv uas yog them los ntawm hnyav loads. Tsis ruaj tsis khov rau UV hluav taws xob. PEEK cov khoom tiv thaiv kev sib cuag nrog
feem ntau cov kuab tshuaj (organic compounds, ntsev, roj), dej kub thiab high temparature steams. Lawv tsis tawm tsam muaj zog
acids (concentrated nitric acids, sulfuric acids), halogens thiab ib co aromatic hydrocarbons

Daim ntawv thov

Tshwj xeeb bearings, twj tso kua mis thiab li qub, cov khoom siv rau kev lag luam tshuaj, hluav taws xob thiab tshuab hluav taws xob thaum muaj cov yam ntxwv siab thiab cov khoom tiv thaiv corrosion.

PEEK Series Data Sheet

Yam khoom

Test Standard

Chav tsev

PEB 5600 G

PEB 5600GF30

PEB 5600 CF30

PEB 5600LF30

Xim

Ntuj los yog Dub

Ntuj los yog Dub

Dub

Dub

Qhov ntom

TS EN ISO 1183

g/cm³

1.3±0.01

1.5±0.01

1.4±0.01

1.43±0.01

Dej Abs. (25 degree.24 teev)

ISO 62

%

0.5

0.11

0.06

0.06

Pwm shrinking feem pua

3mm, 170 degree, Flow kev taw qhia

%

1.2

0.4

0.1

0.3

Perpendicular rau ntws kev taw qhia

%

1.5

0.8

0.5

0.5

Melting point

DSC

degree

343

343

343

343

Distortion kub

ASTM D 648 3

degree

163

315

315

293

Kev siv qhov kub thiab txias

TIAB SA 74685

degree

260

260

260

260

Coefficient ntawm thermal expansion

ASTM D 696, ASTM D696

10^-5degree

4.7

2.2

1.5

2.2

Tensile zog (23 degree)

ISO527-2/1B/50

Mpa

100

155

220

134

Tensile elongation (23 degree)

ISO527-2/1B/50

34

2

1.8

2.2

Khoov lub zog (23 degree)

ISO 178

Mpa

163

212

298

186

Compressive zog (23 degree)

ASTM D 695 Cov khoom siv

Mpa

118

215

240

150

Lzod cuam tshuam lub zog (tsis muaj qhov sib txawv)

ISO 180/U

KJm-2

Tsis tawg

51

46

32

Rockwell hardness

ASTM D 785 3

99

103

107

102

Flammable theem

UAS 94

V-0 @mm

1.5

1.5

1.5

0.75

Dielectric zog

IEC 248

KV/m

1.8

1.9

Dielectric tsis tu ncua

IB 250

3.2

3.3

Nto resistivity

Ω

10¹⁵Ω

10¹⁵Ω

3×10⁶Ω

5×10⁶Ω

Kev sib txhuam coefficient

μ

0.30-0.38

0.38-0.46

0.28

0.18

Yog xav tau lwm yam parameter, thov hu rau peb!

PEEK5600G: 100% PEEK
PEEK5600GF30: PEEK+30% iav fiber ntau
PEEK5600CF30: PEEK+30% carbon fiber
PEEK5600LF30: PEEK + (10% Carbon fiber ntau+10% Graphite+10% PTFE)

Loj (mm)

Loj (inch)

Loj (mm)

Loj (inch)

3mm ib

12 hli

3, 175 mm

1/8''

12.7mm ib

1/2''

3, 969mm

5/32''

13 hli

4mm ib

14mm ib

4, 763mm

3/16''

14.288mm 3

9/16''

5mm ua

15 hli

5, 556mm

7/32''

15,875mm

5/8''

6mm ib

16 hli

6.35mm ib

1/4''

19.05mm 19.00 Nws

3/4''

7mm ib

20 hli

7, 144mm

9/32''

22.225 mm

7/8''

7, 938mm

5/16''

25 hli

8mm ib

25.4mm ib

1''

8 ,731mm

11/32''

28.575mm 3

1-1/8''

9mm ib

30 hli

9, 525mm

3/8''

31.75mm 3

1-1/4''

10 hli

35mm ib

11 hli

38.1mm ib

1-1/2''

11.1125 hli

7/16''

50 hli
